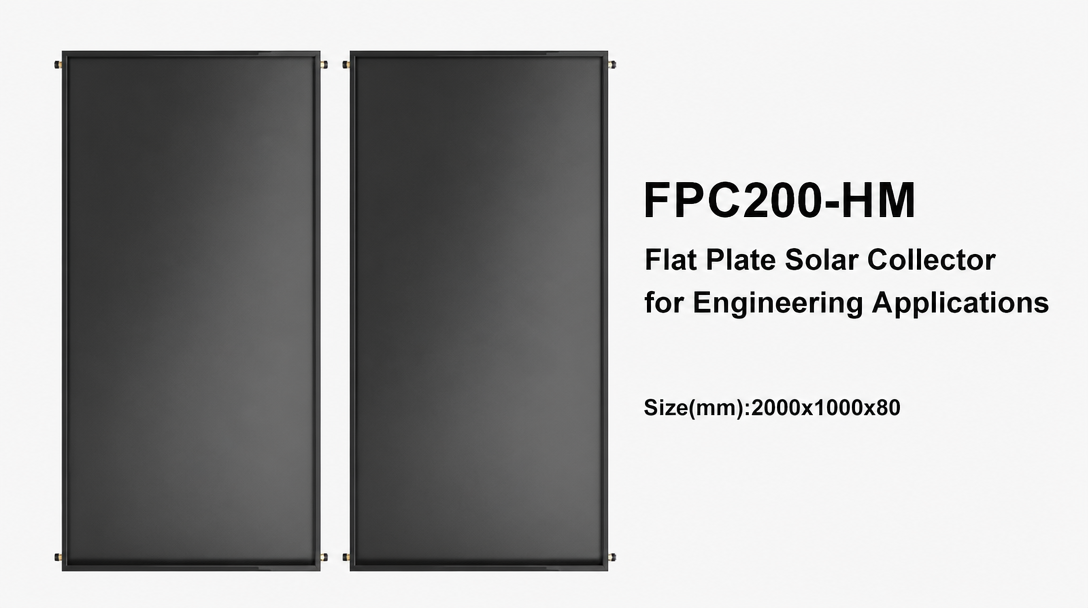

Engineering Flat Plate Solar Collector

High-Efficiency Solar Thermal Solution for Commercial & Engineering Projects

The Engineering Flat Plate Solar Collector is designed for large-scale solar hot water and heating applications. With a pressure-bearing structure, high-performance selective coating and efficient thermal insulation, it provides reliable solar heat collection for residential communities, schools, hospitals, factories, greenhouses and other commercial projects.

Its modular design supports series and parallel connection, while the collector quantity and system configuration can be customized according to heating area, hot water demand and installation requirements.

Key Features

Pressure-Bearing Design

Designed for pressurized solar thermal systems, the collector provides stable operation for centralized hot water and heating applications. The robust structure helps improve system reliability under continuous working conditions.

High-Efficiency Solar Absorption

A high-performance selective absorption coating efficiently captures solar radiation and converts it into usable thermal energy, helping improve overall solar thermal performance.

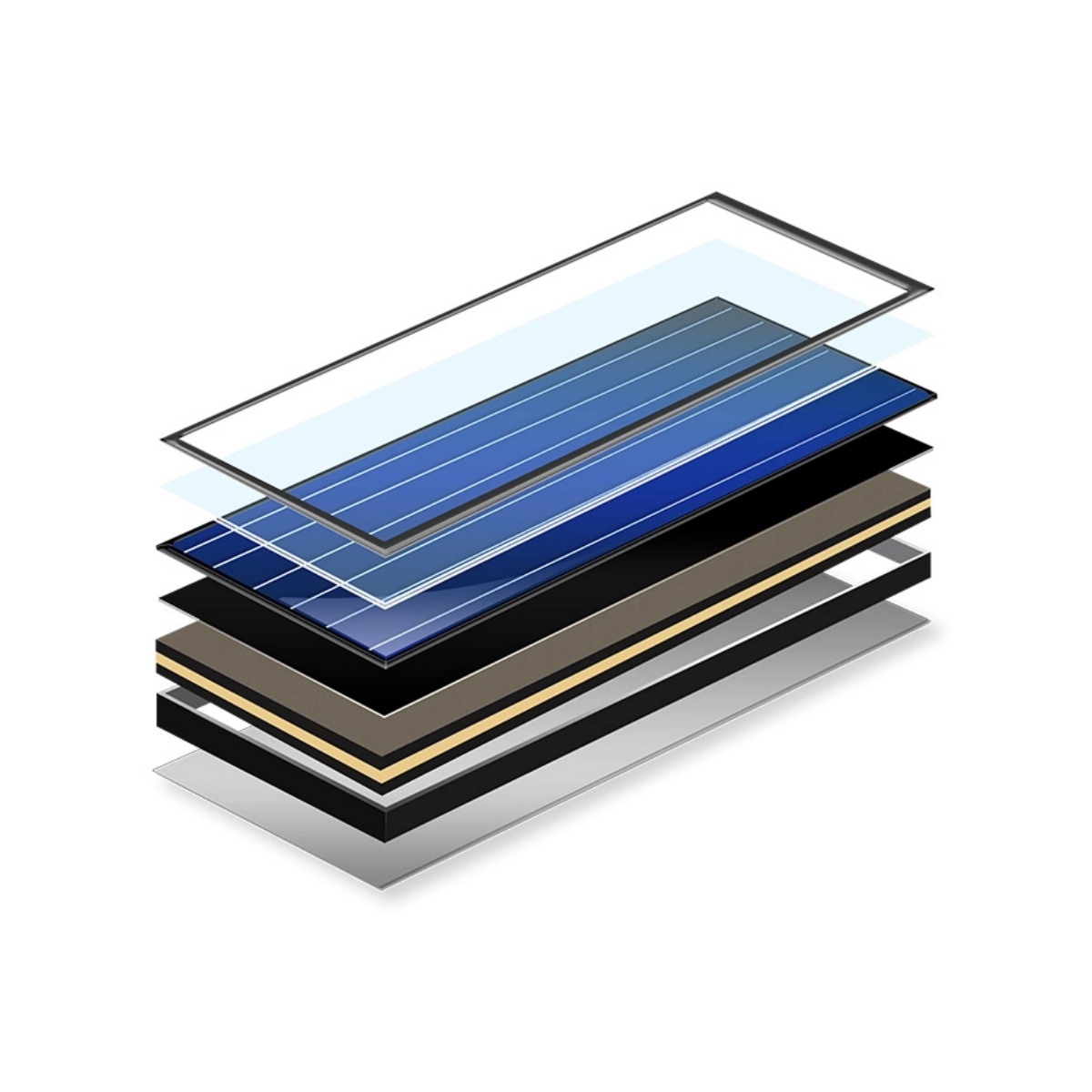

Low-Iron Tempered Glass

The collector uses low-iron textured tempered glass with high light transmittance. Its strong mechanical performance provides additional protection against outdoor impact and hail.

Reduced Heat Loss

The integrated insulated collector housing uses high-efficiency insulation materials to reduce thermal losses and maintain effective heat transfer, including during lower ambient temperatures.

Modular Installation

Multiple collectors can be connected in series or parallel according to system requirements. This modular configuration makes it easier to scale the solar thermal system for different project sizes.

Flexible Project Customization

Collector quantity and system configuration can be selected according to:

1. Hot water demand
2. Heating area
3. Installation space
4. System pressure
5. Piping configuration
6. Project scale

How the Flat Plate Solar Collector Works

The collector absorbs solar radiation through its selective absorption layer. Solar energy is converted into thermal energy and transferred to the circulating heat-transfer fluid through the internal flow channels.

The heated fluid then transfers thermal energy to a storage tank or heating system, providing hot water or space heating for the building.

Multiple collectors can be connected in series or parallel to achieve the required thermal capacity for different engineering projects.

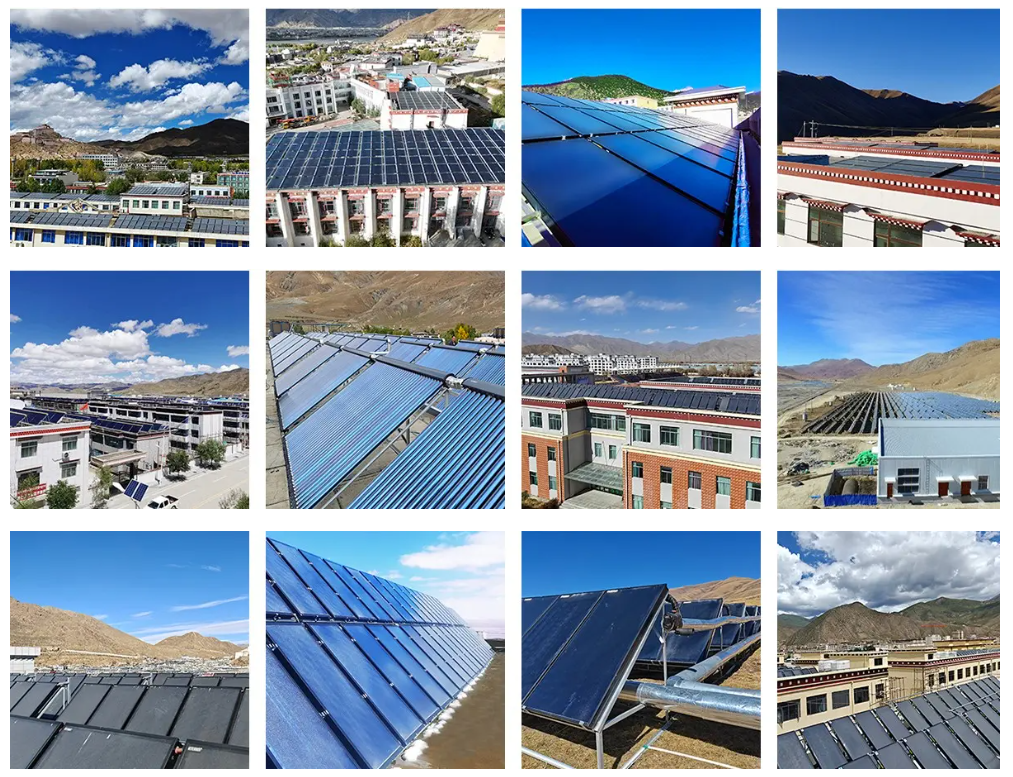

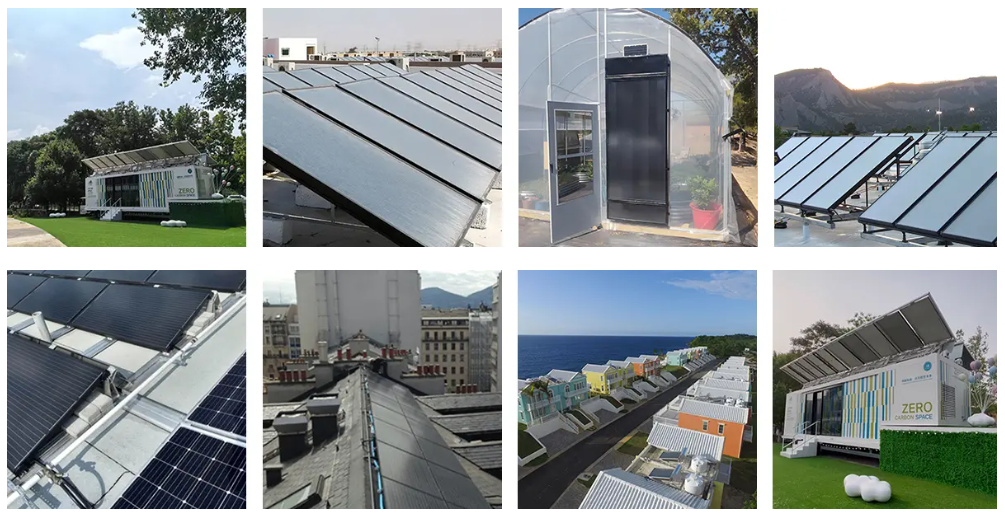

Applications

The Engineering Flat Plate Solar Collector is suitable for solar thermal projects requiring centralized hot water or heating, including:

Residential Buildings

Solar hot water and heating solutions for residential communities, apartments and large housing developments.

Hotels & Hospitality

Suitable for hotels, resorts and other facilities with continuous hot water demand.

Schools & Public Buildings

Can be integrated into centralized hot water systems for schools, hospitals and public facilities.

Industrial Facilities

Suitable for factories and industrial buildings requiring solar-assisted hot water or heating.

Agricultural Greenhouses

Provides solar thermal energy for greenhouse heating and hot water applications.

The reference product page specifically identifies residential communities, schools, hospitals, factories and agricultural greenhouses as application scenarios.

Built for Large-Scale Solar Thermal Projects

Unlike a small residential solar collector, this engineering-oriented design focuses on system scalability, pressure-bearing operation and project flexibility.

Multiple collectors can be combined according to the required heating capacity. This allows system integrators, EPC contractors and project developers to configure solar thermal systems based on actual site conditions and energy demand.

Modular Design · Pressure-Bearing Operation · High Thermal Efficiency · Easy Installation · Flexible Configuration

Why Choose Our Engineering Flat Plate Solar Collector?

• Engineering-Grade Design for centralized heating and hot water systems
• High Solar Absorption for efficient thermal energy conversion
• Pressure-Bearing Structure for pressurized system applications
• Durable Materials for long-term outdoor operation
• Low Heat Loss through integrated insulation
• Series & Parallel Connection for scalable system design
• Project Customization according to heating demand and installation conditions
• Suitable for Commercial & Industrial Applications
